Details
The Q3 series mini-integrated scrap metal shears are designed for use in recycling companies, automobile dismantling plants, and the smelting and casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges. The HC series can work automatically and continuously or manually in single operation, making it the best equipment for light furnace charge and steel cutting.
The features of the Q3 series mini-integrated scrap metal shear include:
(1) Hydraulic drive with simple operation and easy maintenance, ensuring safety and reliability.
(2) Shear force has nine grades ranging from 5 to 63 tons; blade length options range from 400mm to 1800mm, providing various models to choose from. New machines can also be customized according to customer requirements.
(3) No footing bolts are needed for installation and diesel engines can be equipped for power.
(4) Smaller size, lighter weight, and smaller occupation area.
(5) Vertical design and rapid design result in faster shear rate.
(6) Movable type design satisfies the need for changing places.
The Q3 series hydraulic metal shears adopt high-quality hydraulic systems and excellent blades, making it easy to cut various metal materials. It not only has efficient and precise cutting ability but also has simple and convenient operation and is easy to maintain. Its vertical design stabilizes waste during cutting, while the rapid design effectively improves production efficiency. With its small size and light weight, it can also be customized according to user requirements to meet different site needs. Moreover, the movable type design makes the Q3 series hydraulic metal shears more flexible and capable of meeting different site needs.
In summary, the Q3 series hydraulic metal shears are efficient and intelligent waste metal processing equipment that adopts hydraulic drive, has simple operation, is easy to maintain, and ensures safety and reliability. They are widely used in recycling companies, automobile dismantling plants, and the smelting and casting industry.
Application
Parameter
| Model | Max Shear Force(KN) | Motor power(kw) | Blade Length(mm) | Blade Table Height(mm) | Blade Opening(mm) | Working Pressure(Mpa) | Control | Machine Size(mm) |
|---|---|---|---|---|---|---|---|---|

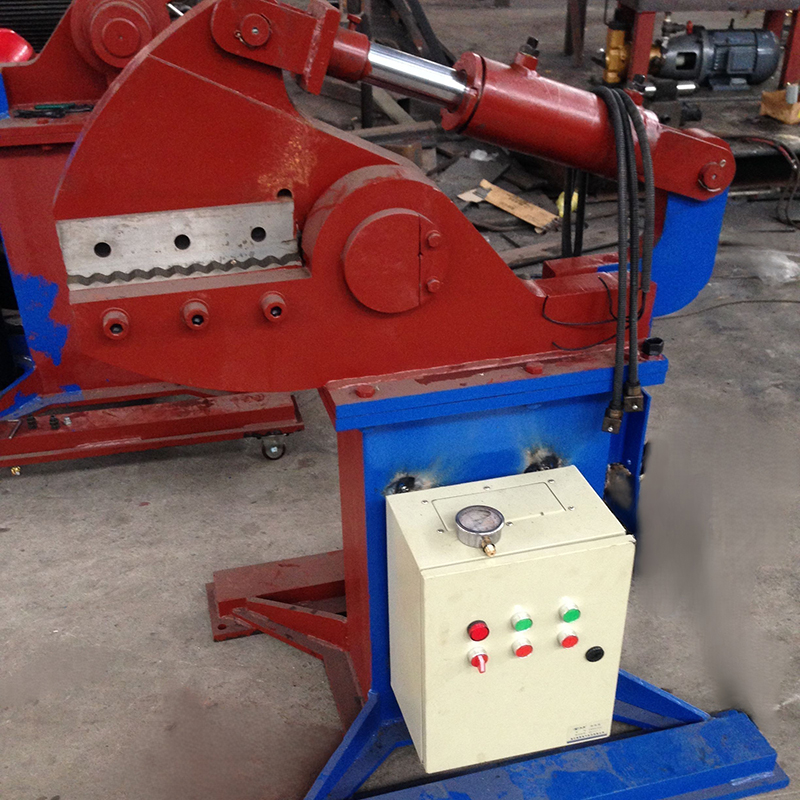

| Q3-60 | 60 | 3 | 300 | 1250 | 160 | 15 | Electric Control | 1200×980×1400 |

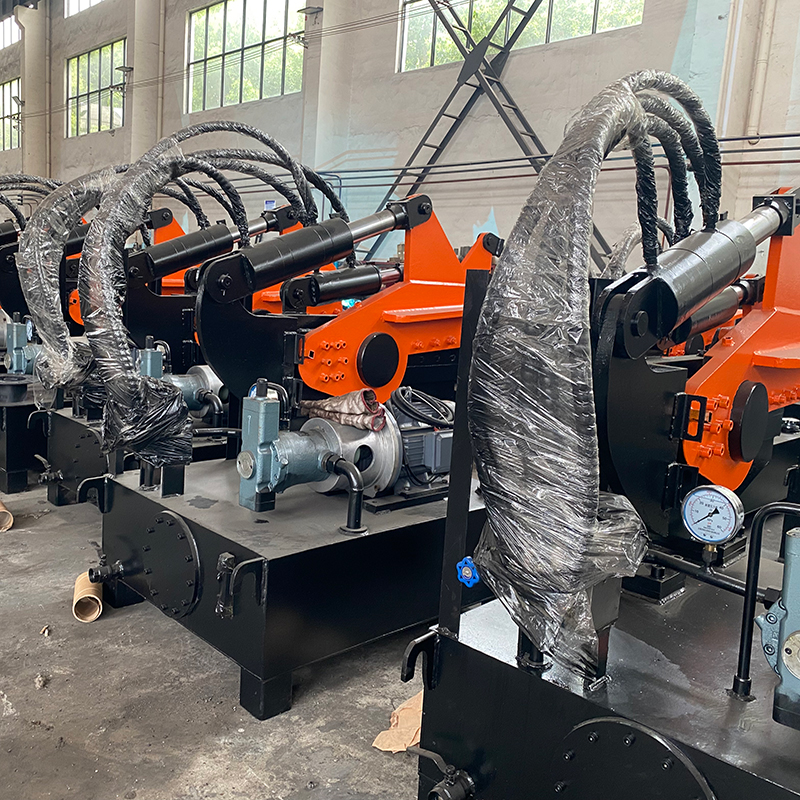

| Q3-250 | 250 | 5.5 | 300 | 800 | 160 | 15 | Electric Control | 1200×980×1200 |

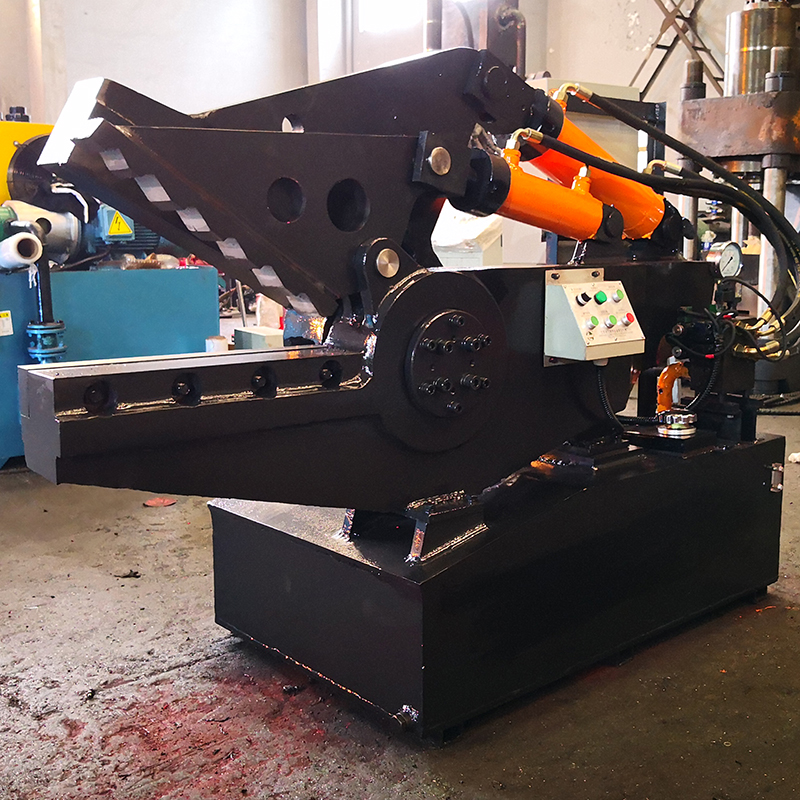

| Q3-630 | 630 | 7.5 | 400 | 760 | 260 | 21.5 | Electric Control | 1500×800×1200 |
| HCZ630 | 630 | 7.5 | 400 | 760 | 260 | 21.5 | Electric Control | 1500×800×1200 |
