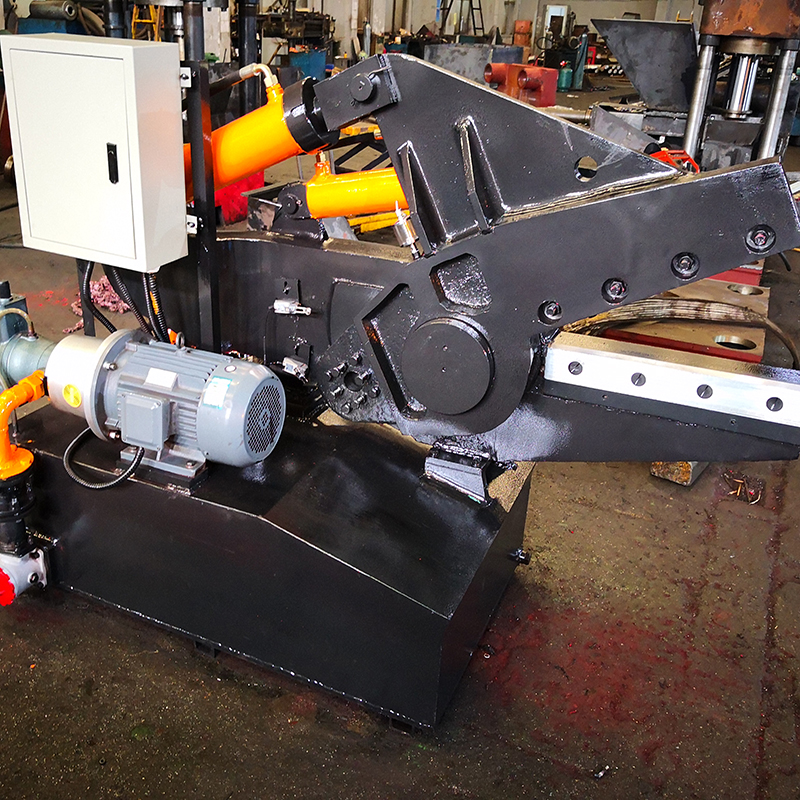

Q3-630 Mini-intergrated Scrap Metal Shear

Details

Q3-630 is a small crocodile shear machine that uses hydraulic transmission technology. Compared to traditional mechanical shear machines, it has the advantages of small size, light weight, low inertia, low noise, smooth operation, easy operation, flexibility, large shear section, and easy adjustment of the shear mouth, making it more convenient to use and facilitating overload protection.

The machine also features manual and automatic functions, with simple and convenient operation control. It can start and stop shearing at any position during the work process and can control the size of the shear mouth arbitrarily according to the size of the sheared material, achieving high work efficiency. Additionally, it also has a quick device that utilizes a fast loop to increase the shearing speed without increasing the motor power or oil pump displacement, thereby improving work efficiency by nearly double.

Q3-630 has a maximum shearing force of 630KN, a motor power of 7.5 kW, a blade length of 400mm, a blade opening of 260mm, and a shear height of 760mm. The machine's working pressure is 21.5 MPa and consists of a pressing oil cylinder and a shearing oil cylinder. During operation, the hydraulic pump station supplies oil to the pressing oil cylinder to push the sliding block to press the blade onto the lower blade seat, completing the fixation and compression of the material. Then, it supplies oil to the shearing oil cylinder to make the shearing blade descend and complete the shearing step. After shearing is completed, the hydraulic pump station supplies oil to the shearing oil cylinder and pressing oil cylinder in turn to complete the returning action driven by hydraulic oil reflux.

Furthermore, Q3-630 adopts advanced piston ring sealing technology from abroad, which can maintain the shearing force stability even under high oil temperature conditions and for long-term operation or when the oil temperature is high. These advantages improve the quality standard of the machine and extend its service life.

Finally, Q3-630 has dimensions of 1500×800×1200mm and a weight of 2000kg, making it ideal for use in small and medium-sized enterprises. It is widely used in industries such as automobiles, light industry, electronics, and construction. If you need an efficient, convenient, and easy-to-operate small crocodile shear machine, Q3-630 will be your best choice.
