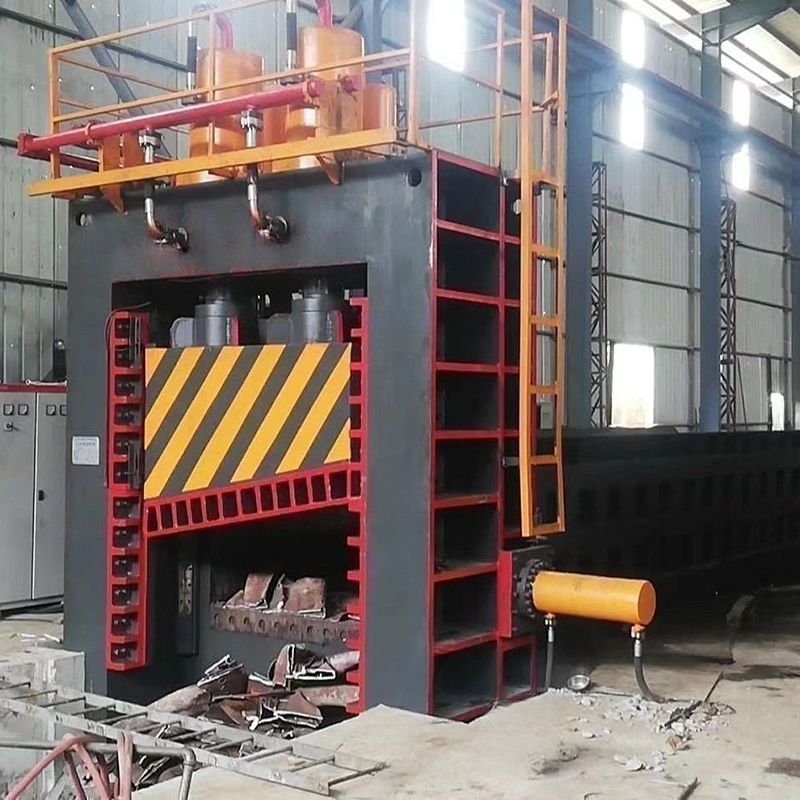

Q2-6300 Heavy-duty Scrap Metal Shear

Details

Q2-6300 heavy-duty gantry shear machine is an ideal equipment for cutting various types of scrap steel, round steel, square steel, steel plates, and heavy scrap steel. This product mainly consists of a host, a feeder, a hydraulic cylinder, a motor, and other components, including plug-in valves, one-way valves, oil drain valves, and oil suction filters.

The Q2-6300 heavy-duty gantry shear machine adopts a fully automatic control system with sequential control and safety protection functions. It is equipped with two hydraulic oil tanks and can be equipped with a detachable hydraulic cylinder, which has a large storage capacity and allows the equipment to work for a long time without heating, thus better working. At the same time, the product is also equipped with components such as a return oil filter, coupling, main oil pipe, and elbow pipe to ensure efficient operation of the product.

The main part of the Q2-6300 heavy-duty gantry shear machine is mainly composed of left and right beams, upper and lower beams, blades, knife seats, and wear-resistant plates (made of copper). Its blade opening is large, and compared to ordinary shearing machines, it can cut uneven plates with high work efficiency. In addition, its feeder can be customized in length, up to 8 meters long, and its main function is to push the cut material. The bottom and both sides of the feeder are made of NM-500 wear-resistant plates.

The Q2-6300 heavy-duty gantry shear machine is equipped with multiple motors, which are connected to the oil pump through a coupling. The pump is supported by the oil pump support and equipped with imported shock pads, thereby reducing vibration to a greater extent. This product is also equipped with a gate valve to ensure the safety performance of the product.

When using the Q2-6300 heavy-duty gantry shear machine, it is necessary to strictly follow the operating procedures. Before starting each machine, add lubricating oil at regular, fixed, and quantitative intervals according to the lubrication chart requirements. The oil should be clean and free of sediment. The machine tool must be kept clean regularly, and the unpainted parts need to be coated with rust resistant grease. The lubricating oil in the motor bearing should be replaced and added regularly, and the electrical equipment should be checked regularly to see if it works normally, safely and reliably. Regularly check if the triangular belt, handle, knob, and button are damaged. If they are severely worn, they should be replaced in a timely manner and replaced with spare parts. At the same time, regularly inspect and repair switches, fuses, and handles to ensure their reliable operation. When using the machine tool, it is necessary to lubricate and scrub the machine tool.

Overall, the Q2-6300 heavy-duty gantry shear machine is an efficient, safe, and reliable equipment suitable for cutting scrap steel, round steel, square steel, steel plates, heavy scrap steel, and other operations in various situations. It has many advantages, such as sequential control, safety protection, large blade opening, and high work efficiency. If you need to carry out processing operations in this area, consider Q2-6300.
