Details
Automatic Metal Crocodile Shear is a specialized equipment designed for metal recycling plants, scrap car dismantling yards, and smelting and casting industries. It is mainly used for cold cutting of various types of steel and metal structural components to process them into qualified furnace materials.
The device consists of a shear oil cylinder, shear blade, sliding block pressure knife, lower knife seat, and compression oil cylinder. During operation, the hydraulic pump station (power output source) supplies oil to the compression oil cylinder, allowing the sliding block pressure knife to push onto the lower knife seat, thereby fixing and compressing the material. The hydraulic pump station then supplies oil to the shear oil cylinder to complete the cutting step. After cutting, the hydraulic pump station returns the hydraulic oil to the shear oil cylinder and compression oil cylinder in turn to complete the return action.
This equipment is suitable for various metal materials, including metal, tinplate, cast iron, thin iron, thin iron sheet, light thin plate, steel, color steel tile, scrap steel, scrap iron, aluminum alloy, channel steel, angle steel, angle iron, copper plate, metal sheet, aluminum profile, scrap rebar, aluminum plate, iron plate, steel plate, round steel, and old scrap metal.
This equipment has the advantages of high efficiency, automation, safety, and reliability. Using an Automatic Metal Crocodile Shear can improve production efficiency, reduce manual intervention, reduce safety risks, and is very suitable for use in large-scale production scenes. In addition, the equipment also features energy-saving and environmental protection characteristics, which can effectively promote green production and sustainable development.
In summary, the Automatic Metal Crocodile Shear is a powerful, easy-to-use, and highly efficient metal processing equipment that can meet various metal processing needs and provide users with stable and reliable processing solutions.
Application
Parameter
| Model | Max.Cutting force(kn) | Maximum Opening(mm) | Blade Length(mm) | Shearing Frequency(times/min) | Max.Cutting size(mm) | Power(kw) |
|---|---|---|---|---|---|---|

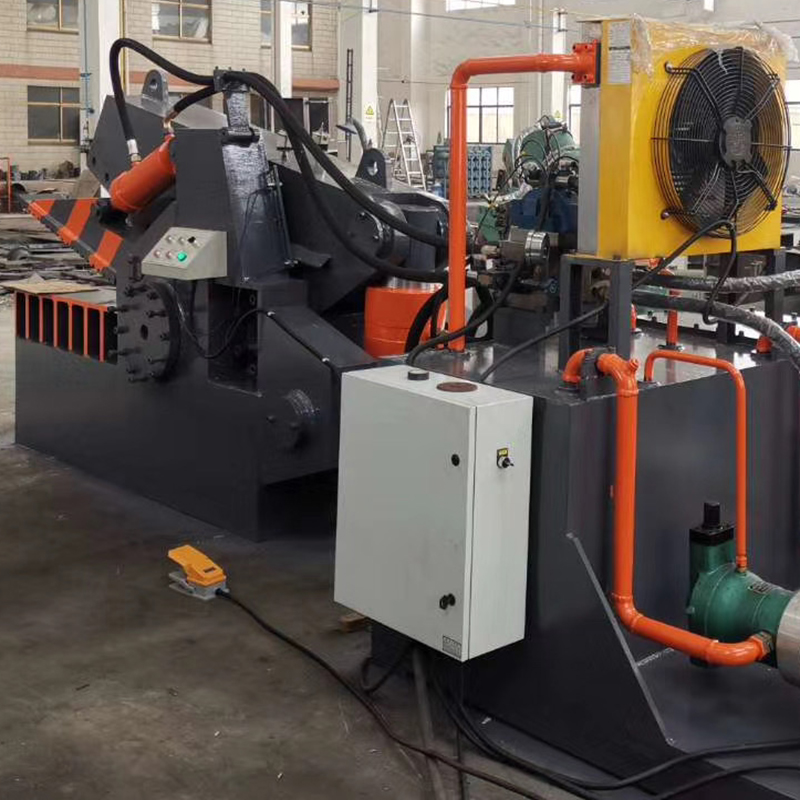

| Q1-630 | 630 | 800 | 800 | 10-14 | 30×30,Φ35 | 7.5 |

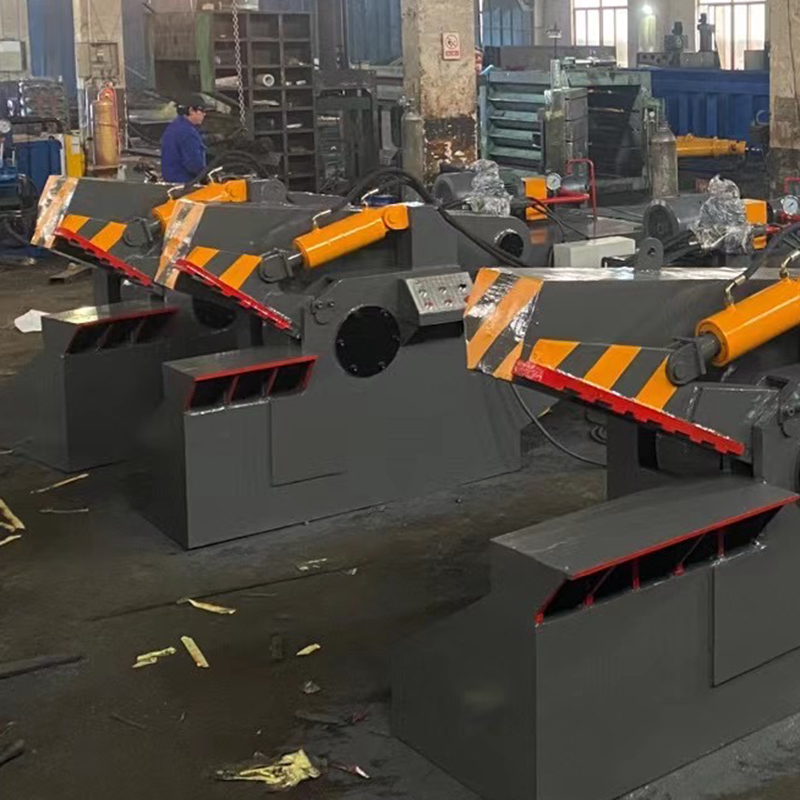

| Q1-1000 | 1000 | 320 | 800 | 10-14 | 40×40,Φ45 | 7.5 |

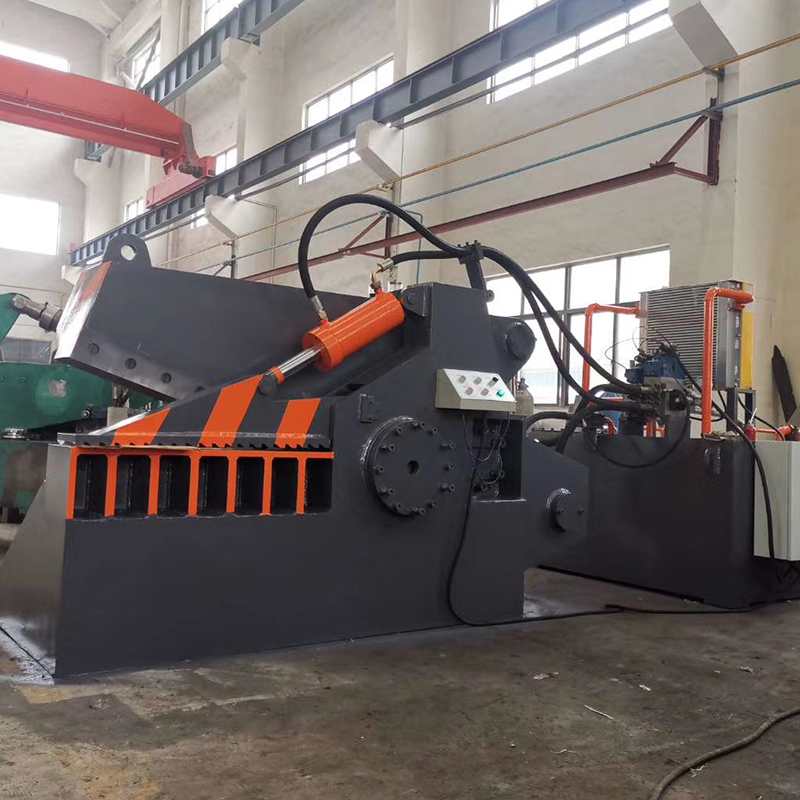

| Q1-1200 | 1200 | 280 | 600 | 10-13 | 45×45,Φ50 | 15 |

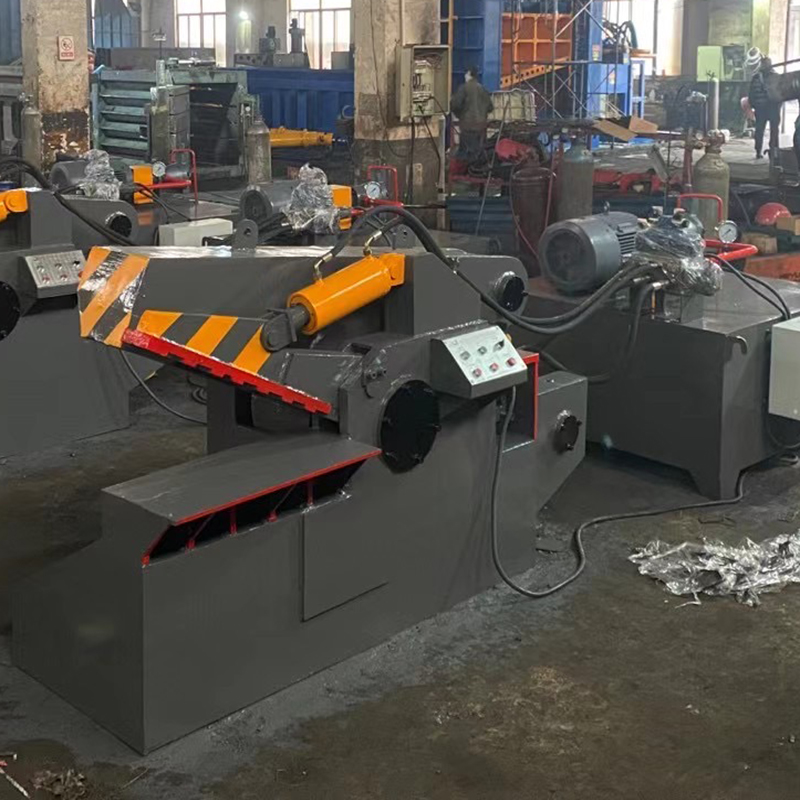

| Q1-1300 | 1300 | 320 | 600 | 10-13 | 45×45,Φ50 | 18.5 |

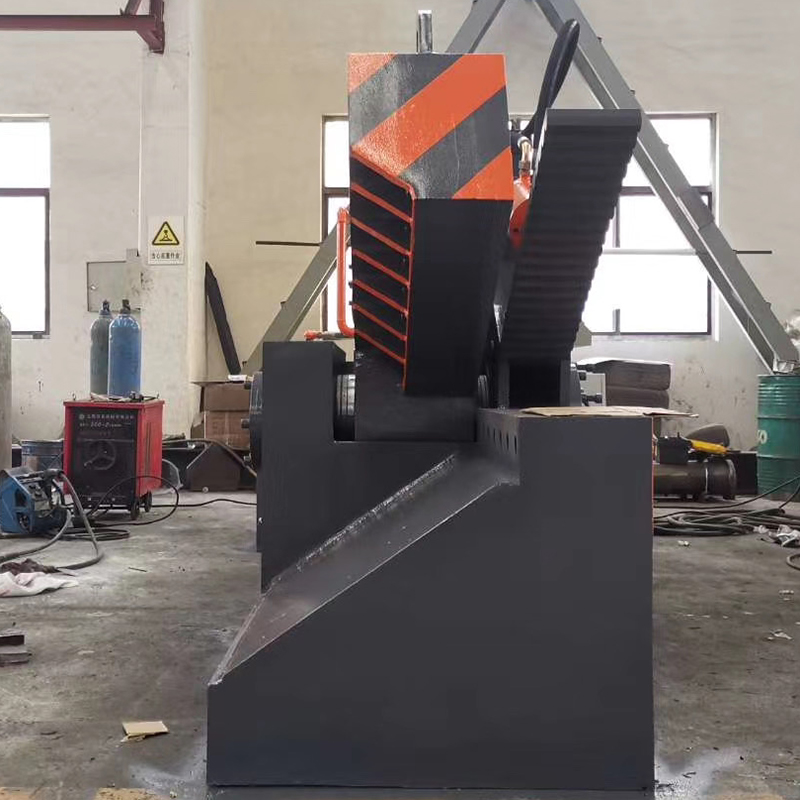

| Q1-1600 | 1600 | 350 | 800 | 10-12 | 55×55,Φ63 | 18.5 |

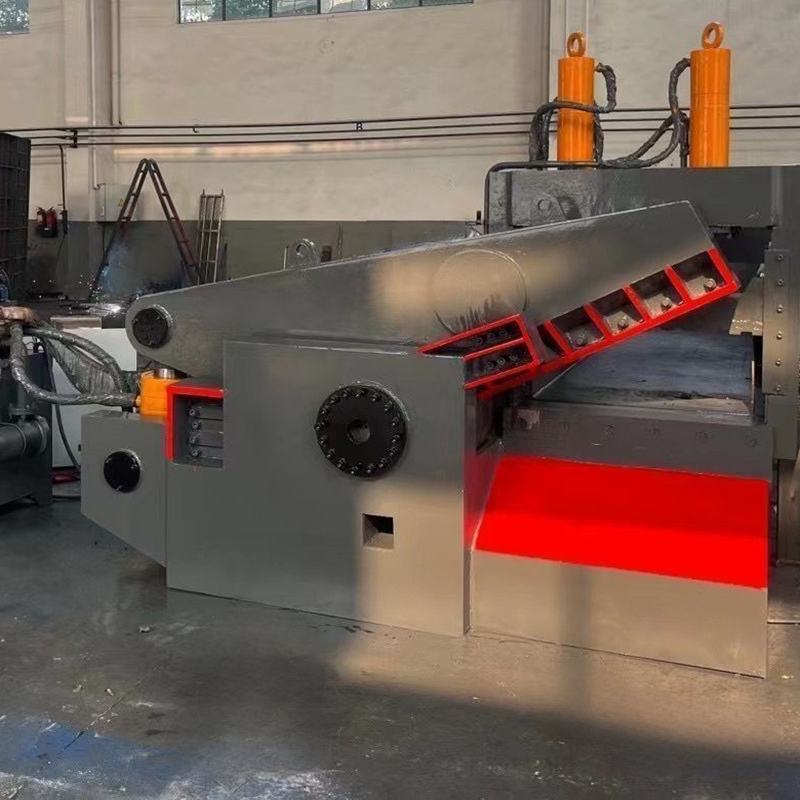

| Q1-2000 | 2000 | 380 | 800 | 9-12 | 60×60,Φ65 | 22 |

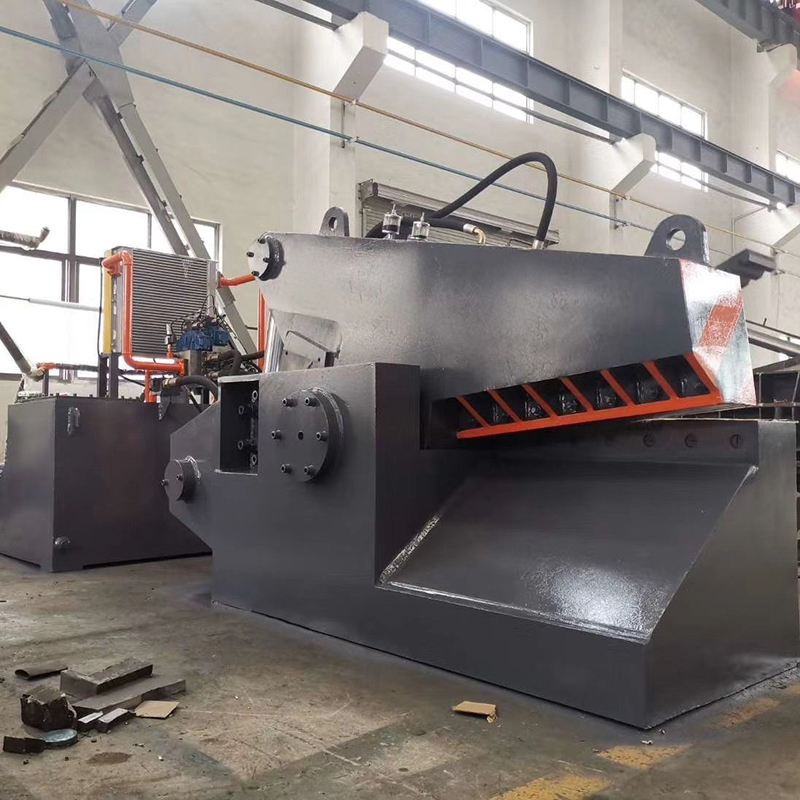

| Q1-2500 | 2500 | 450 | 1000 | 8-12 | 70×70,Φ75 | 30 |
