H5-40 Continuous Full-automatic Horizontal Compactor

  • Series:H5
  • Payment:T/T
  • Port:ShangHai
Get Price
  • Details
  • Application
  • Parameter

Details

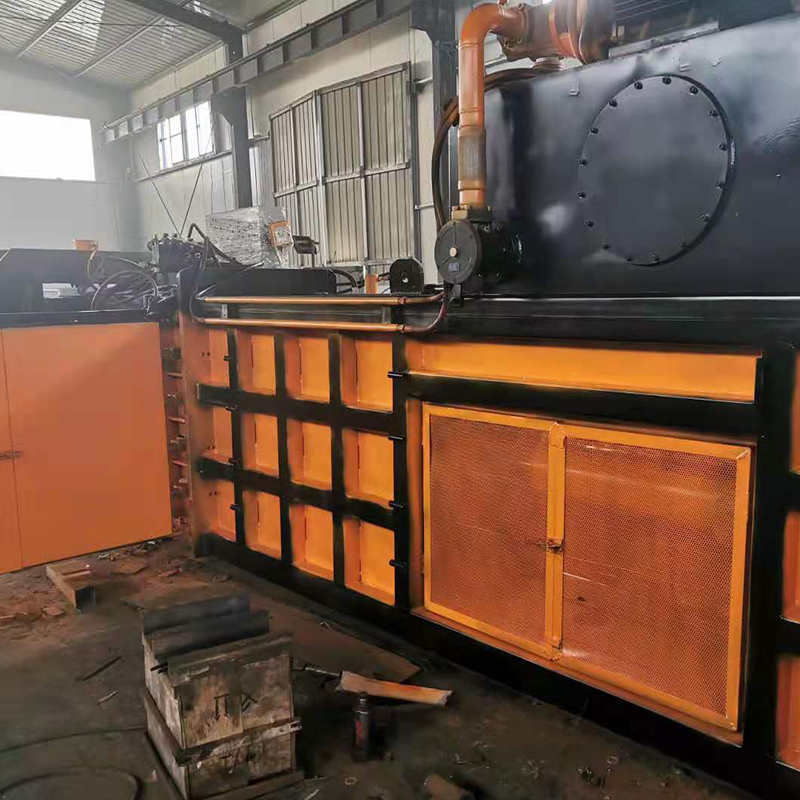

H5-40 is a fully automatic horizontal baling machine that is designed to process various fiber materials, such as card, paper, plastics, alfalfa, straw, and lucerne. This baling press machine has a press pressure of 20-40 tonne and can produce a bale weight of up to 440kg. It can achieve a production rate of up to 2.5 tonne per hour, making it highly efficient for businesses.

One of the key features of the H5-40 baling press machine is its flexible tying system. The machine offers both vertical and horizontal tying options, allowing businesses to choose the best option for their specific needs. Additionally, this model offers the ability to divide a bale into two parts, which makes it easy for operators to handle and transport the bales manually.

Despite being the smallest model in the range, the H5-40 is highly effective and economical for businesses of all sizes. It is an excellent choice for businesses that require a reliable and efficient baling solution but have tight budget constraints. The machine's compact size also makes it ideal for businesses with limited space.

The H5-40 incorporates high-quality components and advanced technologies to ensure maximum reliability, safety, and performance. It is fully automated, meaning that it can complete the entire baling process without any human intervention. The machine also features multiple safety measures, including safety doors and emergency stop buttons to ensure the safety of operators during operation.

Overall, the H5-40 is a highly effective and affordable horizontal baling machine that can process various fiber materials with ease. Its flexible tying options and the ability to divide a bale into two parts make it easy for operators to handle and transport the bales manually. With its compact size and advanced technologies, the H5-40 is an excellent choice for businesses looking for an efficient and economical baling solution.

Parameter

Model H5-40
Hydraulic power 40ton
Bale Size (W*H*L) mm 720*720*(300-1500)
Feeding Opening (L*W) mm 1150*680
Packing density (kg/M³) 350-450
Strapping Number 4
Capacity 1.5-2.5 tons/hour
Motor(Kw/Hp) 15Kw/20Hp
Main Machine Size (L*W*H) mm 6500*3200*1950
Machine Weight (Ton) 8
