Details
H2 series wiper bagging baling press machine has the feature of high efficiency, economical and continuous baled. It is suitable to compress and package small size of splintery material, Output speed can reach 40-60 bales per hour, high efficiency. Self-owning weight and quantity measurement, control weight of each bale effectively, ensuring consistent bales with accurate weight.
It is also simple and has a proper structure. Also this series wiper baler can be customized. It is high strength output door, hydraulic automatic door opening and closing, convenient operation and safety, Safety interlock, three-phase voltage, simple operation and Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
Electric button control, convenient for operation Electric button control, one time to complete compression and disposable bag by one button, Increased material controller can make the machine automatically start compress automatically. Feed material by manually or automatically, high degree of automation, saving manpower.
Adopt foreign famous seal, valve, electric components. Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.
Application
Parameter
| Model | Bale size(mm) | Bale weight(kg) | Main Motor(Kw/Hp) | Appearance size(mm) | Weight(kg) |
|---|---|---|---|---|---|

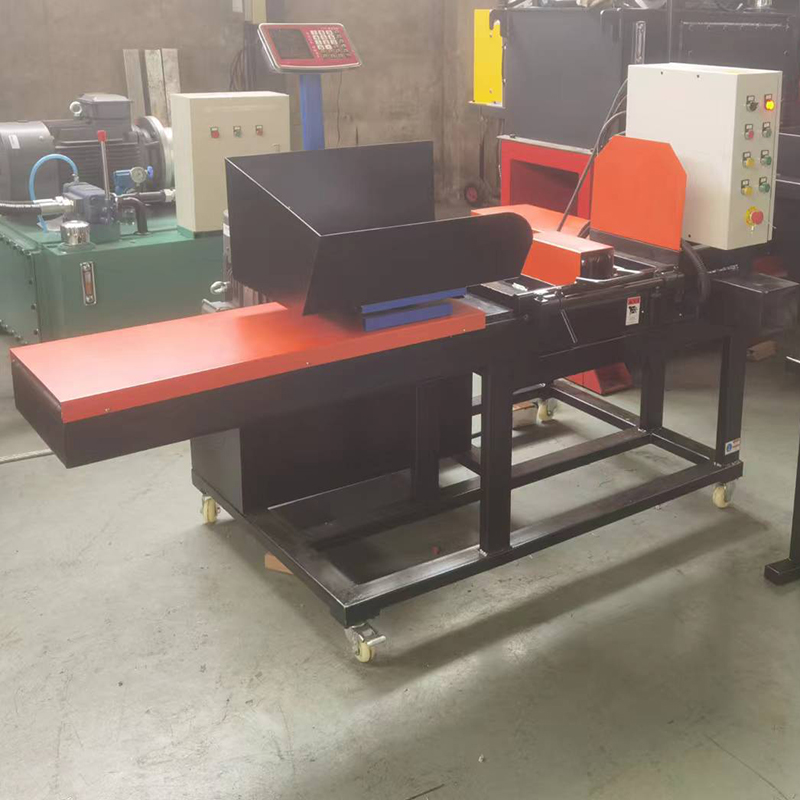

| H2-10 | 210*145*100 | 1Kg | 5.5Kw/7.5Hp | 2160*1240*1150 | 500 |

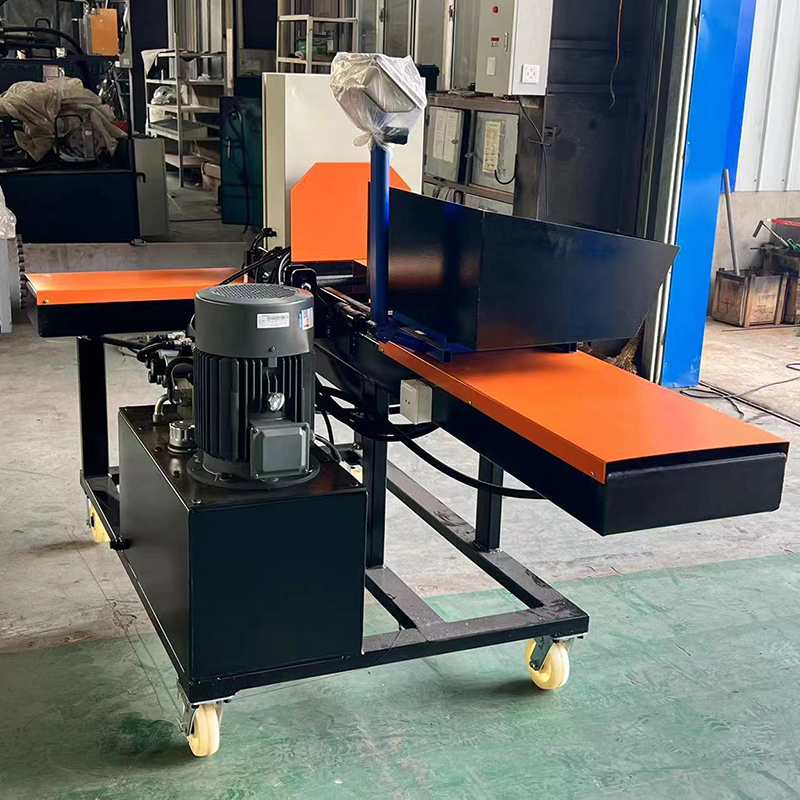

| H2-20 | 280*180*140 | 2kg | 5.5Kw/7.5Hp | 2600*1750*1480 | 720 |

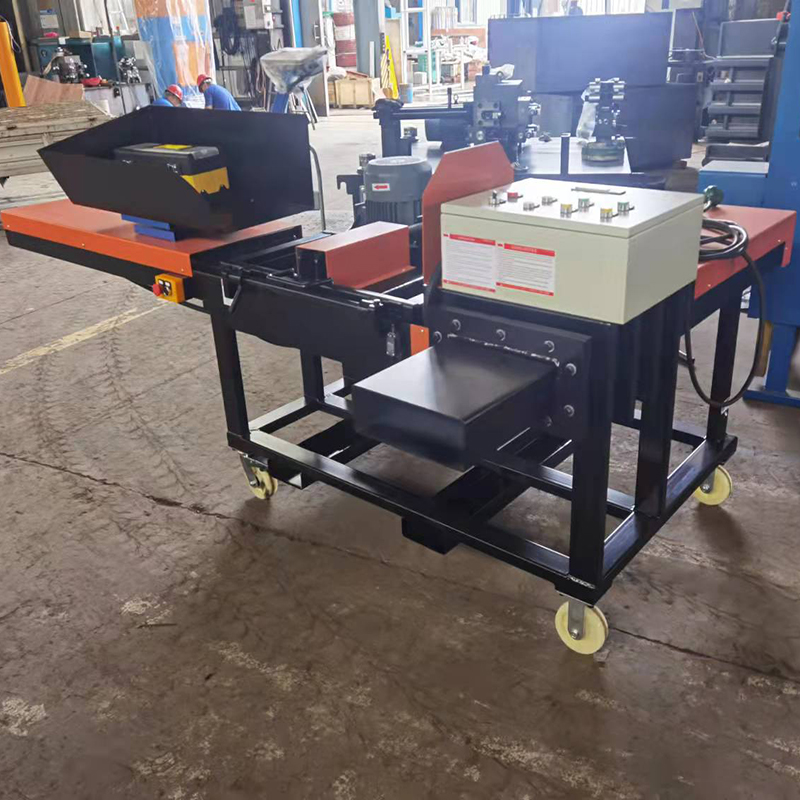

| H2-50 | 400*300*100 | 5kg | 5.5Kw/7.5Hp | 2600*1750*1480 | 765 |

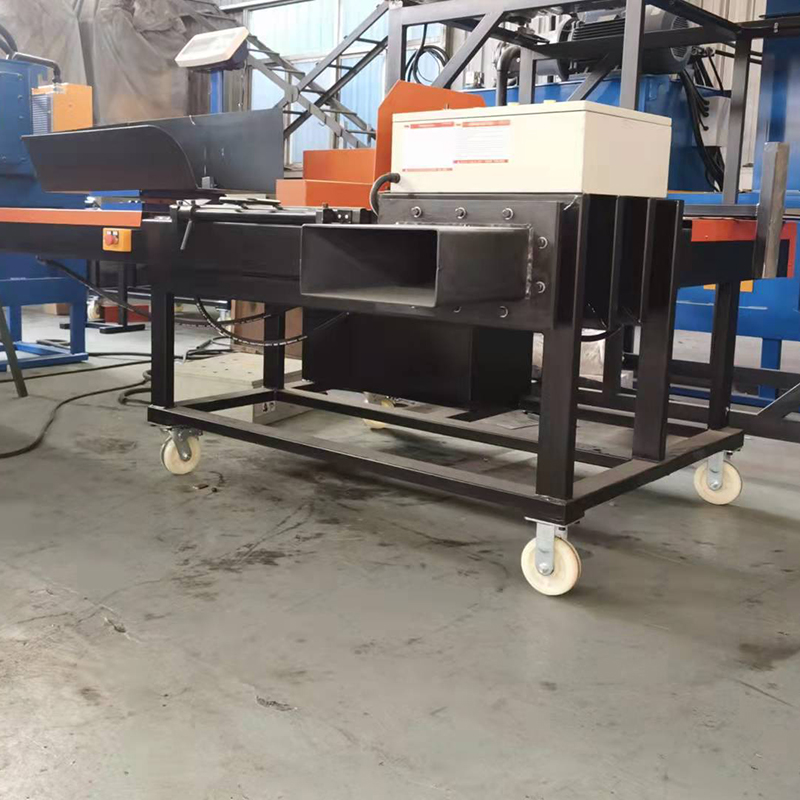

| H2-100 | 400*400*180 | 10kg | 5.5Kw/7.5Hp | 2660*1760*1550 | 815 |

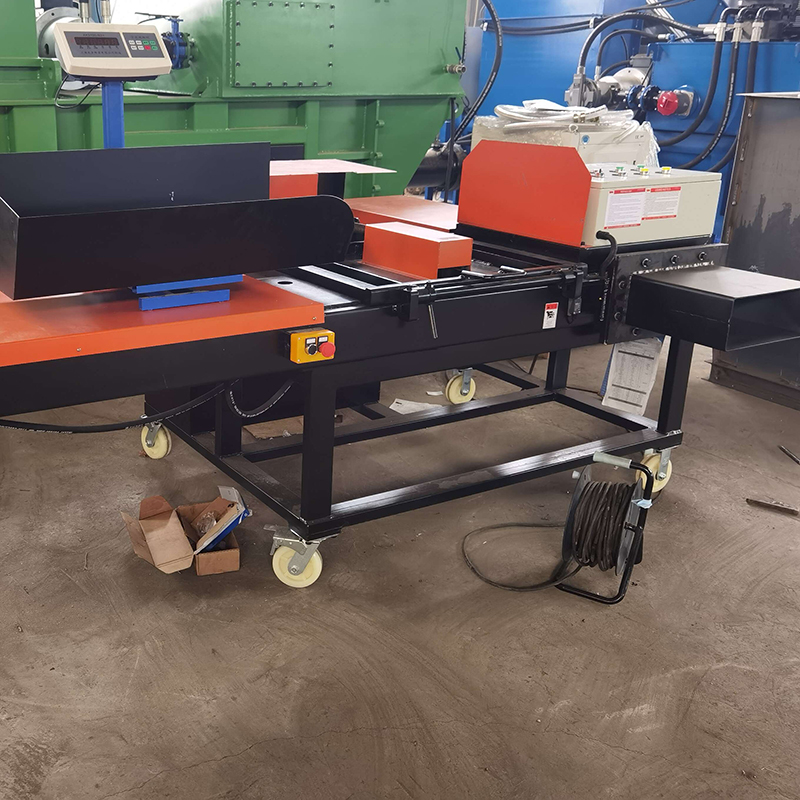

| H2-150 | 550*400*250 | 15kg | 7.5Kw/10Hp | 2750*1810*1550 | 870 |

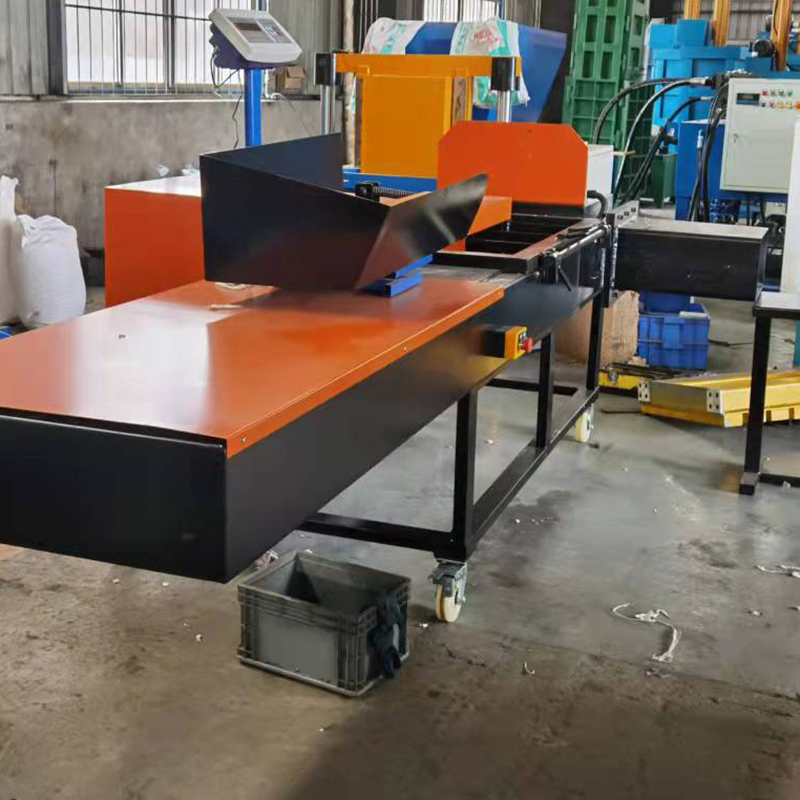

| H2-200 | 550*450*250 | 20kg | 7.5Kw/10Hp | 2980*2015*1550 | 950 |

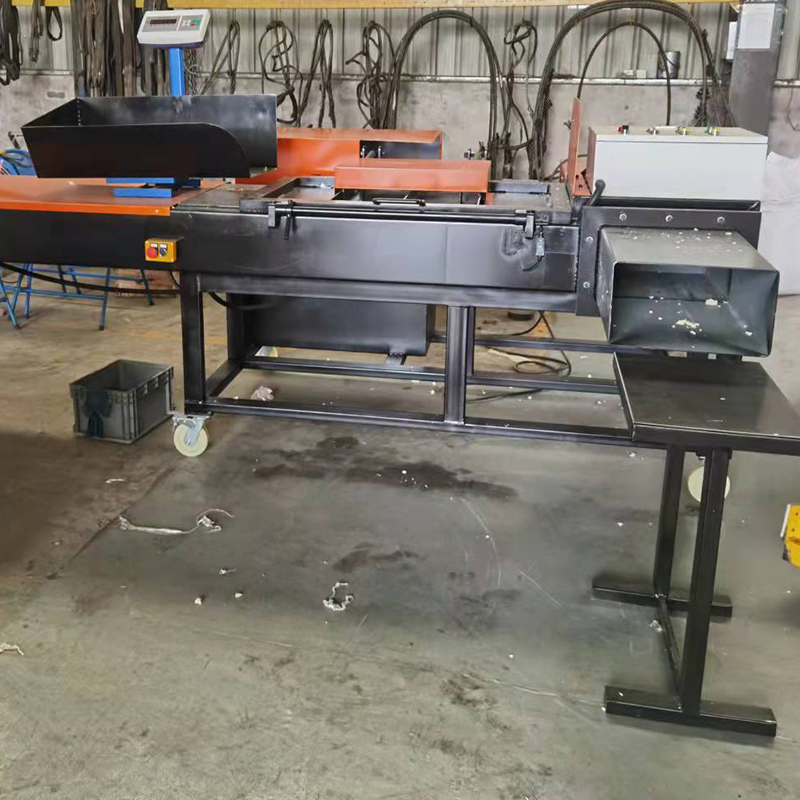

| H2-250 | 600*450*250 | 25kg | 11KW/15Hp | 3210*2330*1550 | 1050 |
